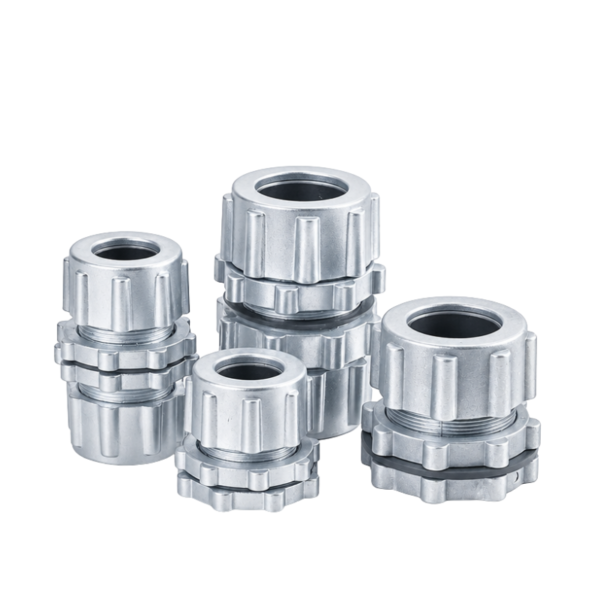

Our bulkhead fittings provide a secure and reliable connection between pulse valves and blowtubes through the dust collector wall. Designed for quick installation on unthreaded blowtubes, they eliminate the need for welding or extra fittings, helping reduce installation time, labor, and material costs.
Compared to plastic-encased timing pulse controllers, metal timing pulse controllers offer better dust and water resistance, as well as greater corrosion and impact resistance; however, they are functionally equivalent to plastic-encased timing pulse controllers.

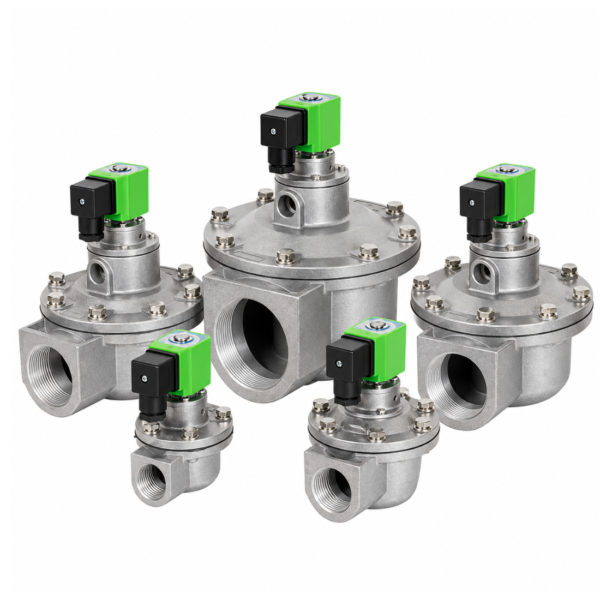

Right-Angle Pulse Solenoid Valve features a 90° inlet and outlet configuration with internally threaded ports. Installed externally on the air reservoir, it is widely used in baghouse and cartridge dust collectors. Its simple installation, smooth airflow, and reliable operation make it suitable for automated pulse cleaning with pulse controllers and differential pressure controllers.

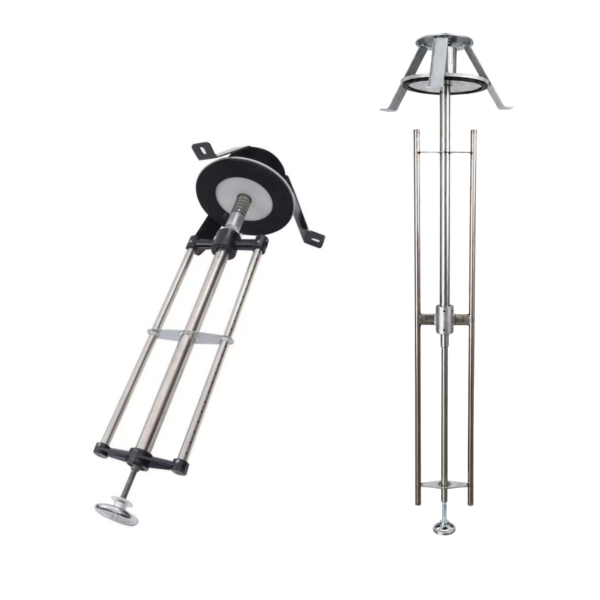

Rotary Pulse Jet Cleaning Wing is a 360° pneumatic rotary blowing assembly for cartridge dust collectors. Motor-free and fully pneumatic, it replaces traditional fixed blowpipes. In one single pulse, it sweeps across all filter pleats to eliminate cleaning dead zones and greatly improve cartridge cleaning performance.

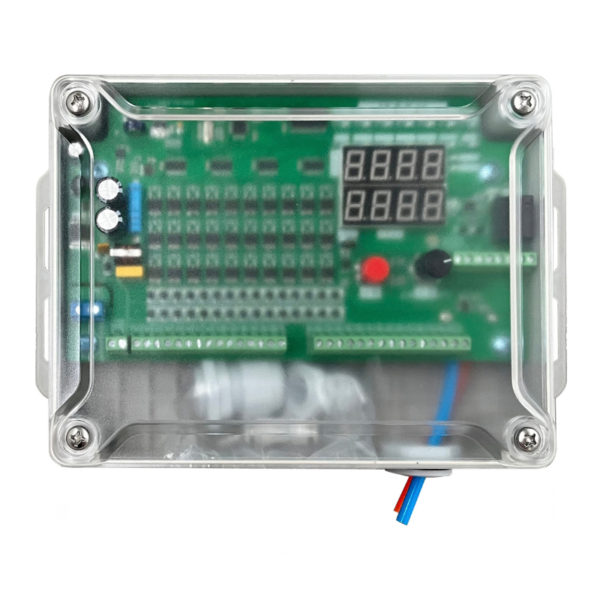

Differential Pressure Pulse Controller provides automatic, on-demand filter cleaning for industrial dust collection systems. It monitors differential pressure across filter cartridges or bags, starts pulse cleaning when the preset high limit is reached, and stops when pressure drops to the low limit, helping optimize cleaning cycles and reduce unnecessary compressed-air consumption.

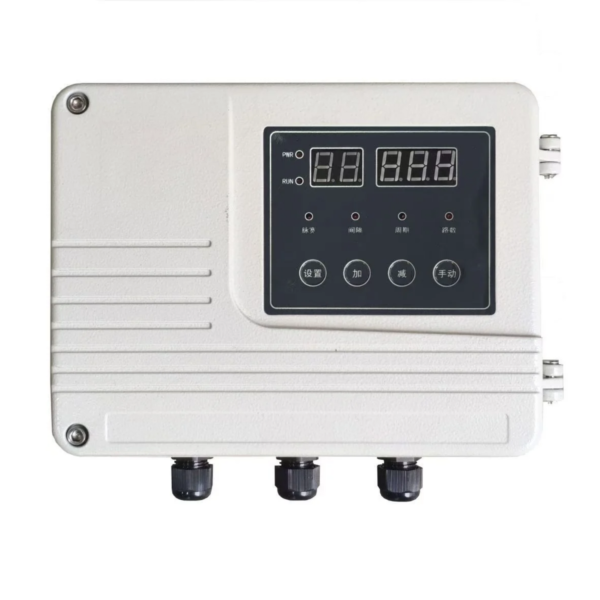

Timer-Based Pulse Controller is designed for automatic pulse cleaning in cartridge and baghouse dust collectors. It controls pulse solenoid valves according to preset pulse duration and interval times, providing sequential and continuous filter cleaning. With simple time-based control, it is suitable for conventional dust collection systems requiring reliable and easy-to-use cleaning control.

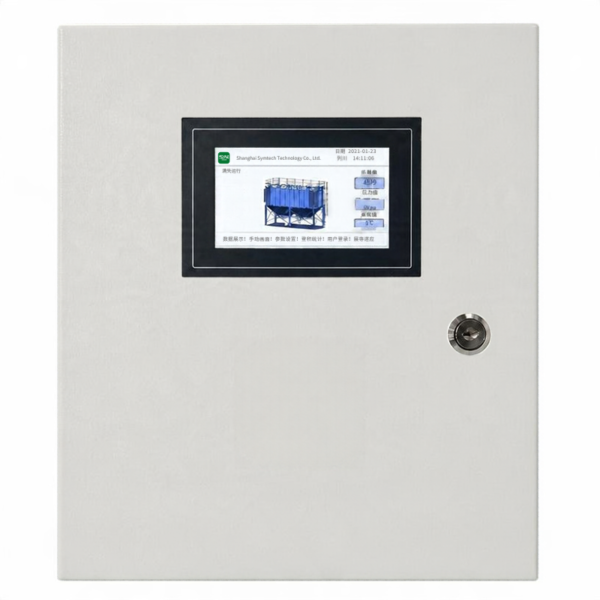

Touchscreen Differential Pressure Controller provides intelligent filter cleaning and monitoring for industrial dust collection systems. It combines touchscreen operation, differential pressure and timer-based cleaning, downtime cleaning, RS485 communication, and multiple analog and digital inputs. Configurable functions allow the controller to adapt to different dust collector structures and control requirements.

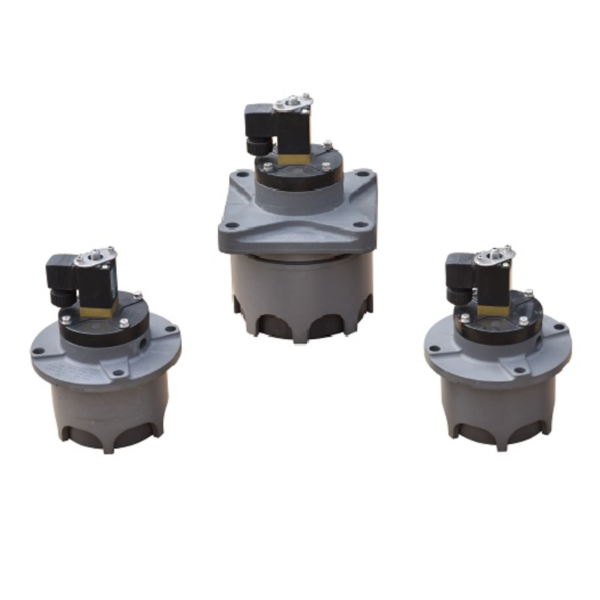

Piston-Type Pulse Solenoid Valve uses a piston-driven structure similar to that of a submerged pulse valve and is generally mounted directly on the air manifold or air reservoir. Compared with conventional diaphragm-type designs, the piston structure uses a piston to actuate the main valve, making it suitable for industrial dust collection systems requiring frequent pulse cleaning, continuous operation, and reliable long-term performance.

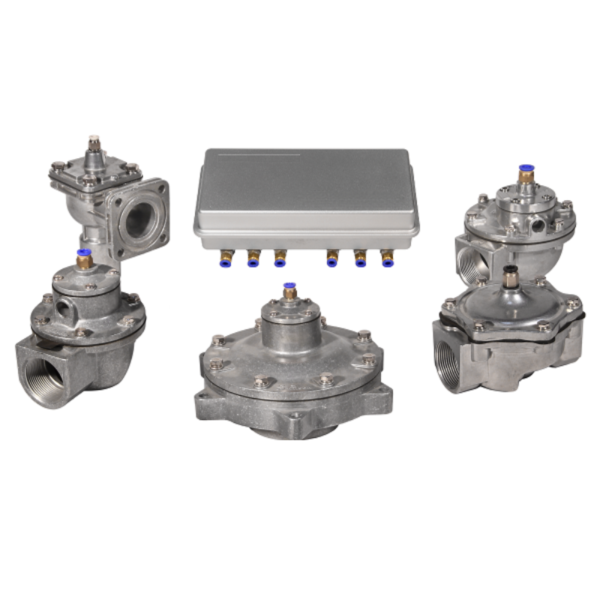

Pneumatically controlled pulse valves are key components in the cleaning system of pulse-jet baghouse dust collectors. Under the control of a remote pulse signal, compressed air actuates the diaphragm inside the valve, causing it to open and close. The diameter of the diaphragm determines the stroke length and the speed of opening and closing; the larger the diameter, the greater the stroke, and the better the cleaning performance.

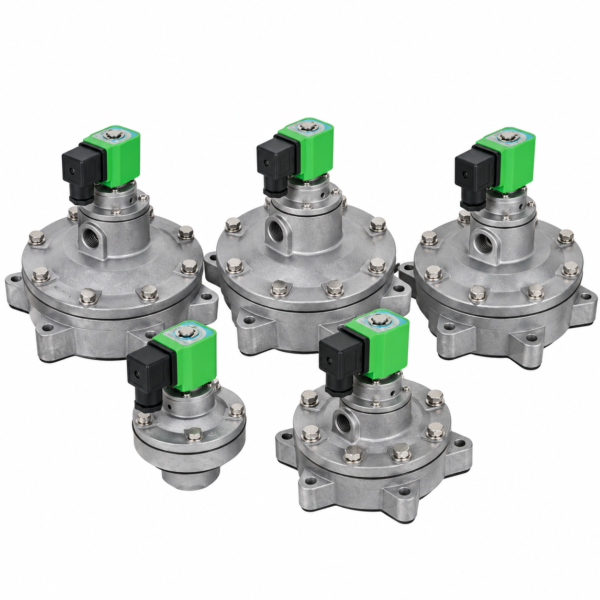

Submerged Pulse Solenoid Valve features an immersion-type design installed directly inside the air reservoir. Its short and direct airflow path helps reduce resistance and pressure loss while delivering a powerful cleaning pulse. Suitable for baghouse and cartridge dust collectors, it supports efficient and reliable automated filter cleaning.

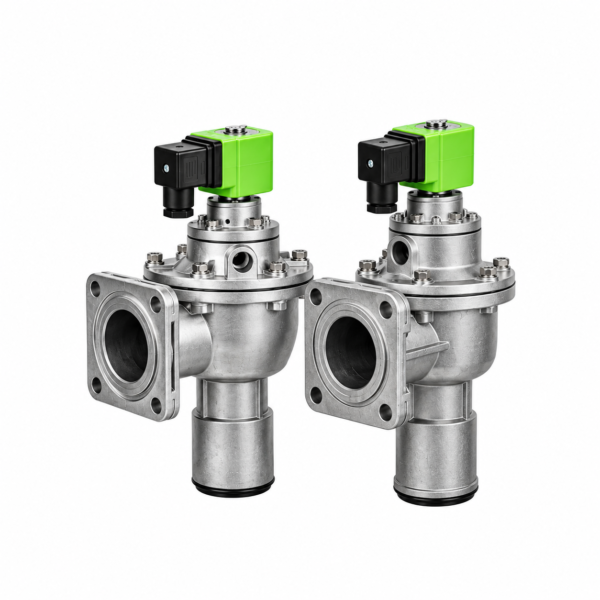

Flanged Pulse Solenoid Valve features a flanged connection design for secure installation to the compressed-air manifold and blowpipe. It provides stable installation, reliable sealing, and smooth airflow. Suitable for cartridge and baghouse dust collectors, it works with pulse controllers and differential pressure controllers for continuous and automated pulse cleaning.

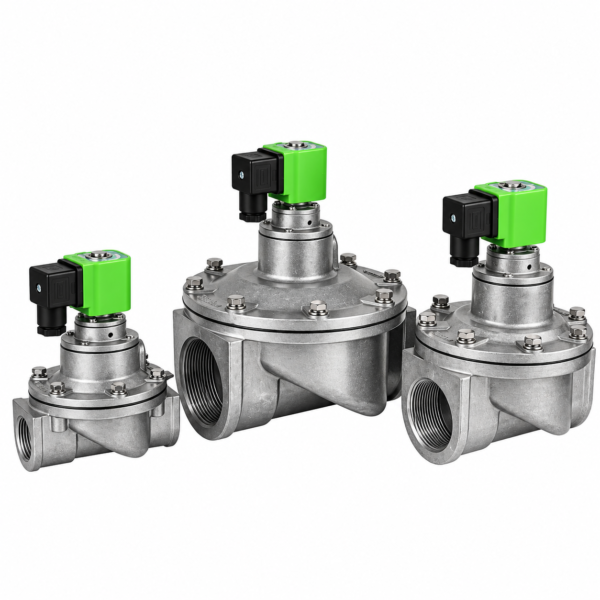

Straight-Through Pulse Solenoid Valve features a 180° straight-through design that helps reduce airflow resistance and pressure loss. Internally threaded ports provide reliable installation and smooth compressed-air flow. Suitable for cartridge and baghouse dust collectors, it works with pulse controllers and differential pressure controllers to deliver stable, automated pulse cleaning.
