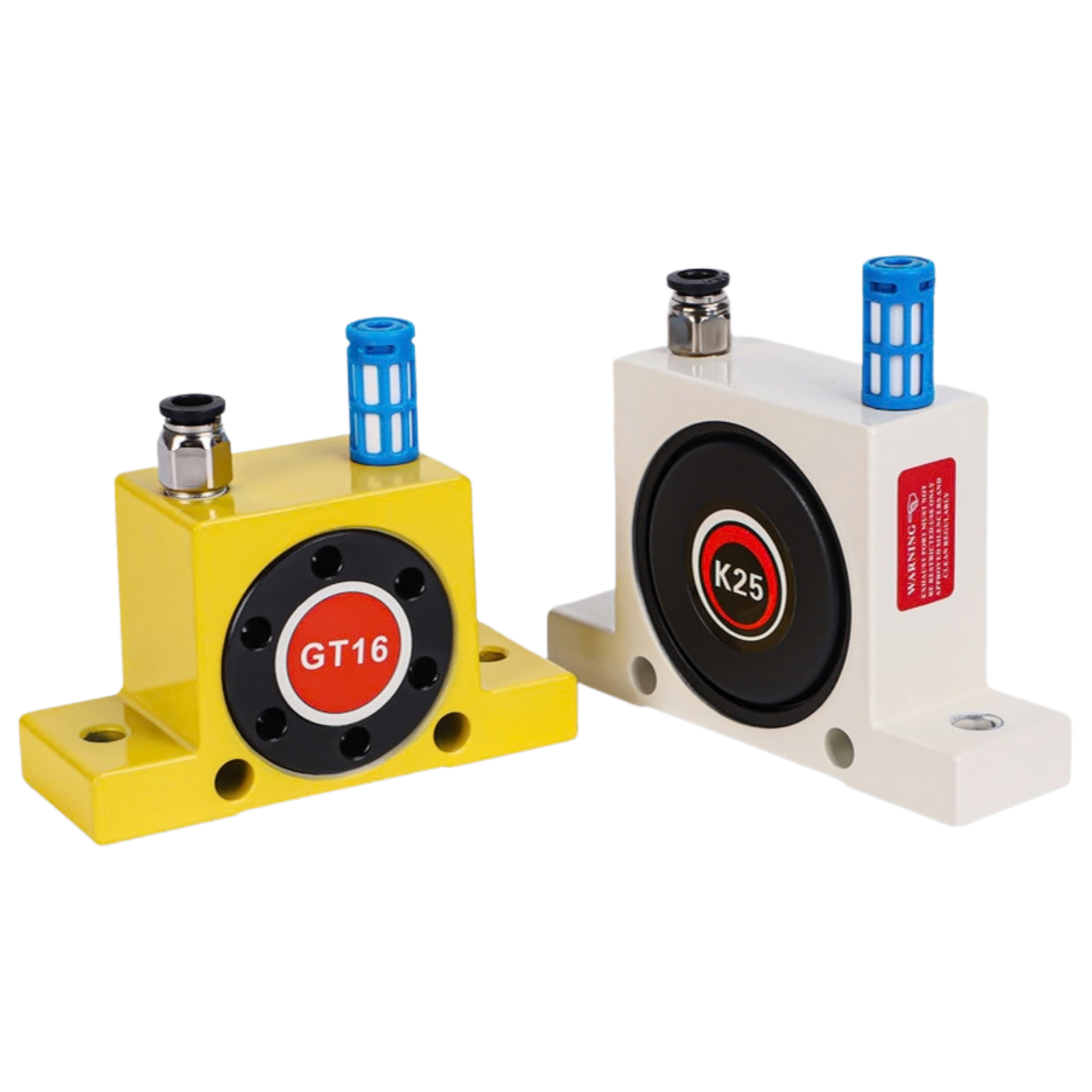

Pneumatic Vibrator uses compressed air to generate high-frequency vibration, helping…
Compared to plastic-encased timing pulse controllers, metal timing pulse controllers…
Differential Pressure Pulse Controller provides automatic, on-demand filter cleaning for…

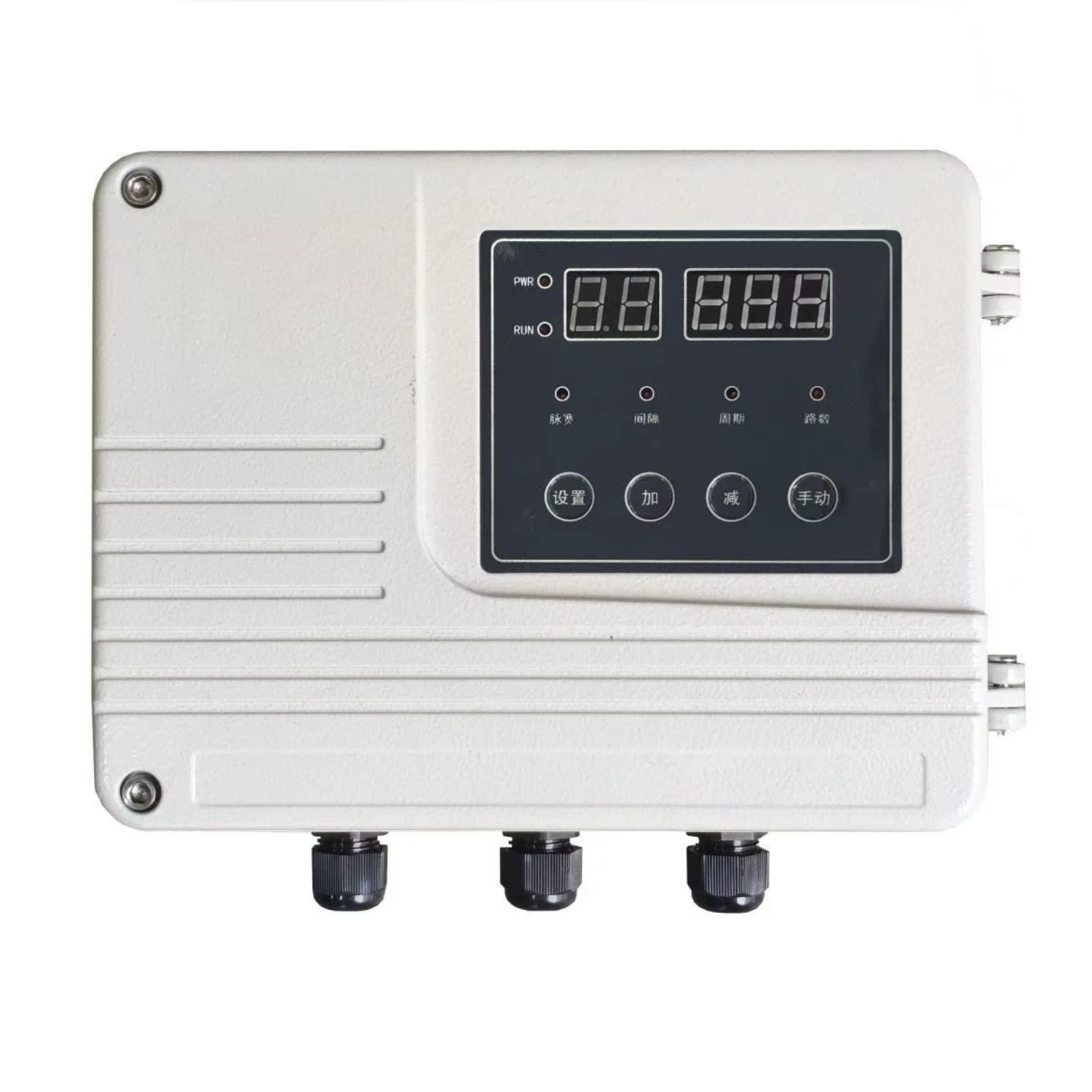

Timer-Based Pulse Controller is designed for automatic pulse cleaning in…
Touchscreen Differential Pressure Controller provides intelligent filter cleaning and monitoring…
Pulse Controllers for Industrial Dust Collectors
Pulse controllers are essential control components in industrial dust collection systems. They control the activation sequence of pulse solenoid valves and the cleaning intervals. Depending on the controller type, filter cleaning can be triggered by preset time intervals or differential pressure changes, helping maintain filter performance and stable airflow.
In powder coating recovery systems and industrial filtration equipment, pulse controllers can work with pulse solenoid valves and rotary cleaning wings to support automatic filter cleaning.
Reliable Control Performance
SYMFILTER provides pulse controllers for different dust collection requirements, combining control accuracy, operational stability, and ease of use.
Accurate Differential Pressure Monitoring: The integrated pressure sensor and front-end driver circuit offer high sensitivity, measurement accuracy, and strong resistance to interference.
Long Service Life and Stable Operation: A wide-voltage switching power supply, industrial-grade MCU, and optocoupler isolation with MOSFET output switching help improve operational stability and service life.
Convenient Operation and Maintenance: English-language panels are available. HMI differential pressure controllers support multiple languages, including Spanish and Portuguese.
Types of Pulse Controllers
SYMFILTER offers three main types of pulse controllers to meet different industrial dust collection requirements.

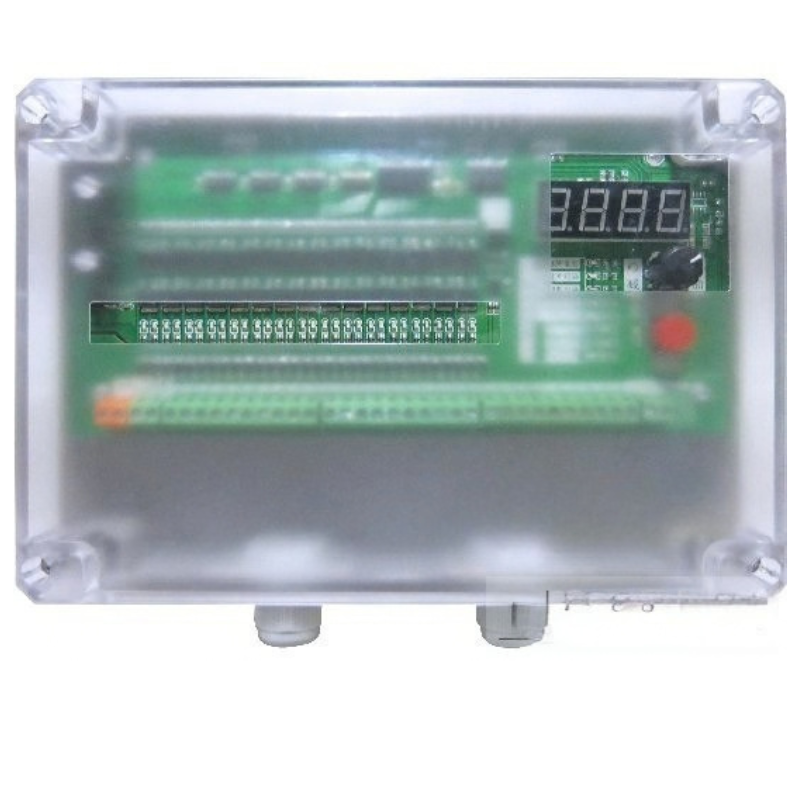

Timer-Based Pulse Controller: Activates pulse valves sequentially at preset time intervals for automatic cleaning. Features an English-language panel, with optional RS485 communication and offline cleaning functions.
Differential Pressure Pulse Controller: Triggers cleaning according to preset differential pressure conditions, helping reduce unnecessary cleaning and providing a first step toward intelligent filter cleaning. This model features an integrated, board-mounted differential pressure sensing system and does not require an external differential pressure transmitter. Standard features include RS485 communication and offline cleaning.

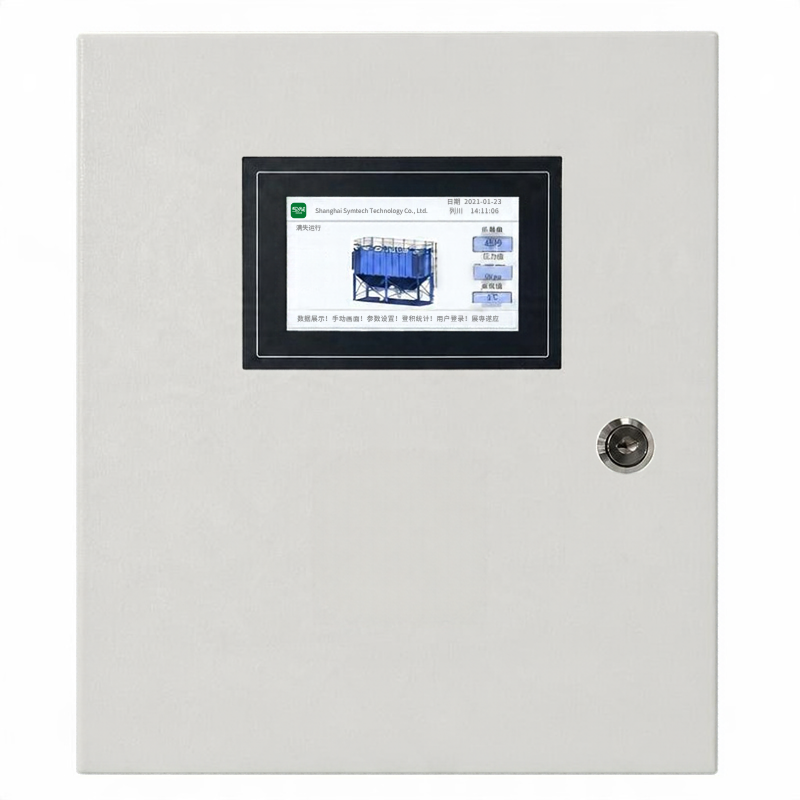

Touchscreen PLC Differential Pressure Controller: Combines HMI touchscreen operation with differential pressure control and offers more advanced monitoring and control functions, depending on configuration. Functions include multiple cleaning modes, such as offline cleaning and mixed cleaning, as well as watchdog functionality. It can also control additional components, such as pneumatic hammers and cylinders, and supports multiple 4–20 mA analog sensor inputs.
Applications
Pulse controllers are widely used in cartridge dust collectors, baghouse dust collectors, electrostatic powder coating booths, and industrial air filtration systems. They support dust collection in powder recovery, material handling, and other industrial applications that generate dust.
Build a Complete Filter Cleaning System
Pulse controllers can be integrated with pulse solenoid valves, rotary wings, and pneumatic components. When selecting a controller, consider the number of valves to be controlled, cleaning modes, differential pressure input requirements, power supply, and output specifications to ensure compatibility with the overall dust collection system.
SYMFILTER is a Chinese manufacturer and supplier of pulse controllers. Please let us know your application requirements so that we can help you find the right pulse controller solution for your dust collection or powder coating system.
