A bulkhead connector is used to connect the pulse solenoid valve to the blowtube, allowing compressed air to pass through the dust collector wall into the cleaning pipework. Its core value lies in providing a reliable pipe connection while simplifying the installation of the cleaning system.

Quick-fit bulkhead connectors can connect smooth, unthreaded blowtubes without welding or additional fittings. This helps reduce installation labor and material costs while making subsequent disassembly and maintenance easier.

Air leakage at the bulkhead connector results in compressed air loss, reducing the efficiency of the compressed air system. Continuous leakage in a pulse-jet cleaning system may also affect supply pressure stability and increase the workload of the air compressor.

Severe leakage may affect pulse valve performance, resulting in insufficient cleaning of filter cartridges or filter bags. This can lead to increased filter resistance and affect the stable operation of the dust collector. Therefore, the sealing components, pipe compatibility, and connection tightness should be checked promptly.

Bulkhead connectors are primarily used in industrial dust collection equipment that employs compressed-air pulse-jet cleaning, including cartridge dust collectors, baghouse dust collectors, and some powder recovery systems.

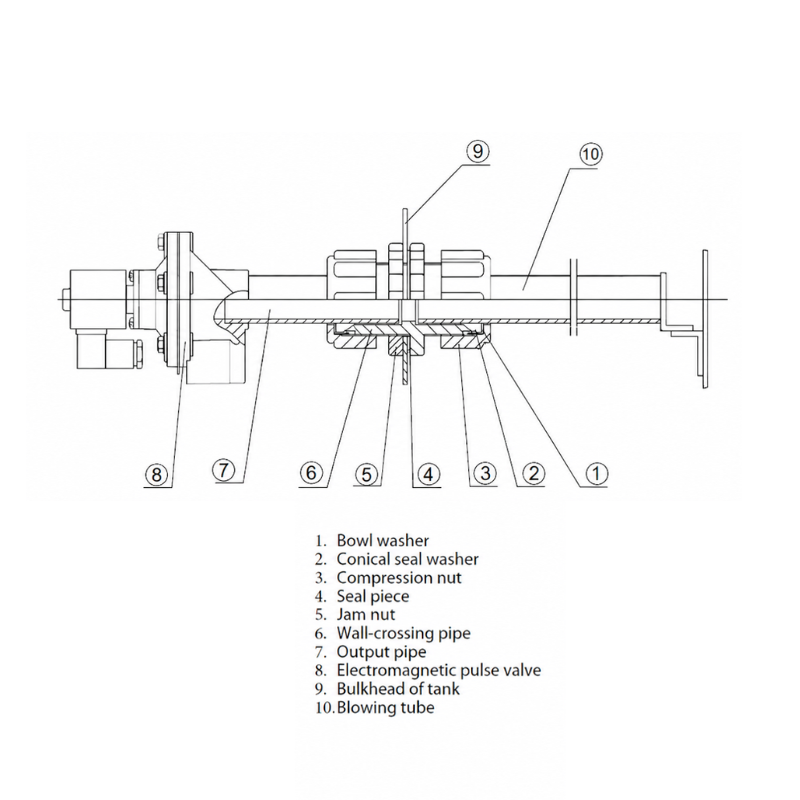

They are typically installed through the dust collector wall to connect the pulse solenoid valve to the blowtube, allowing compressed air to enter the cleaning pipework. Suitability depends on the connector design, connection dimensions, and equipment installation requirements.

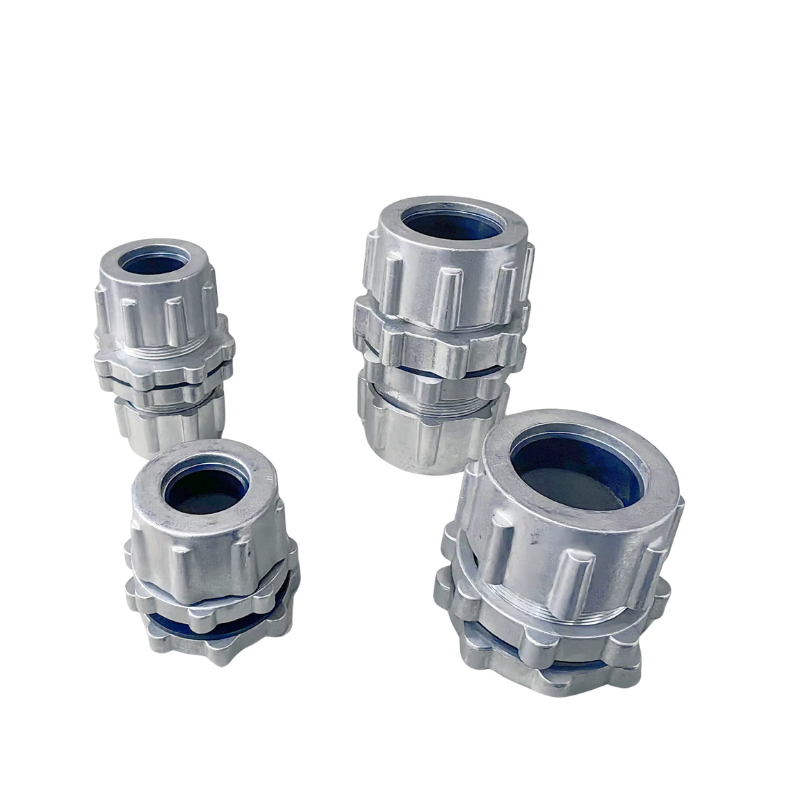

Generally, no. Quick-fit bulkhead connectors can be installed directly on smooth, unthreaded blowtubes, using a compression nut and sealing structure to secure the pipe.

This connection method reduces the need for welding and additional fittings, shortens installation time, and simplifies subsequent disassembly and maintenance. During installation, ensure that the blowtube’s outer diameter matches the connector specifications and tighten the connection according to the manufacturer’s instructions.

What Is the Difference Between Single-Connection and Double-Connection Bulkhead Connectors?

The main difference between single-connection and double-connection bulkhead connectors lies in their pipe connection configurations and installation layouts.

Single-Connection Bulkhead Connector: Designed for specific single-sided connection configurations. The exact connection arrangement depends on the product design.

Double-Connection Bulkhead Connector: Can accommodate pipe connections on both sides of the wall, depending on the system layout.

Selection should be based on the blowtube arrangement, wall structure, connection dimensions, and product drawings. Since terminology may vary between manufacturers, always check the technical drawings of the specific model before purchasing.

If air leakage occurs at a bulkhead connector, follow these inspection steps:

Check the compression nut: Confirm whether the connection is loose and retighten it according to the manufacturer’s instructions.

Inspect the seals: Check for wear, aging, deformation, or incorrect installation. Replace the seals if necessary.

Verify pipe dimensions: Ensure that the blowtube’s outer diameter matches the connector specifications to prevent poor sealing caused by dimensional mismatch.

Inspect the pipe condition: Check whether the blowtube is misaligned, deformed, or damaged on the surface. Ensure that it is properly inserted and correctly fitted into the connector.

Reinstall and test: After resolving the issue, reinstall the connector and perform a leak test under safe conditions.
